Customer name: Flygo Technologv Co. , Limited

Project address: Malaysia

Project name:A hydrogen station in Malaysia

Supporting products：8 cubic hydrogen storage tank

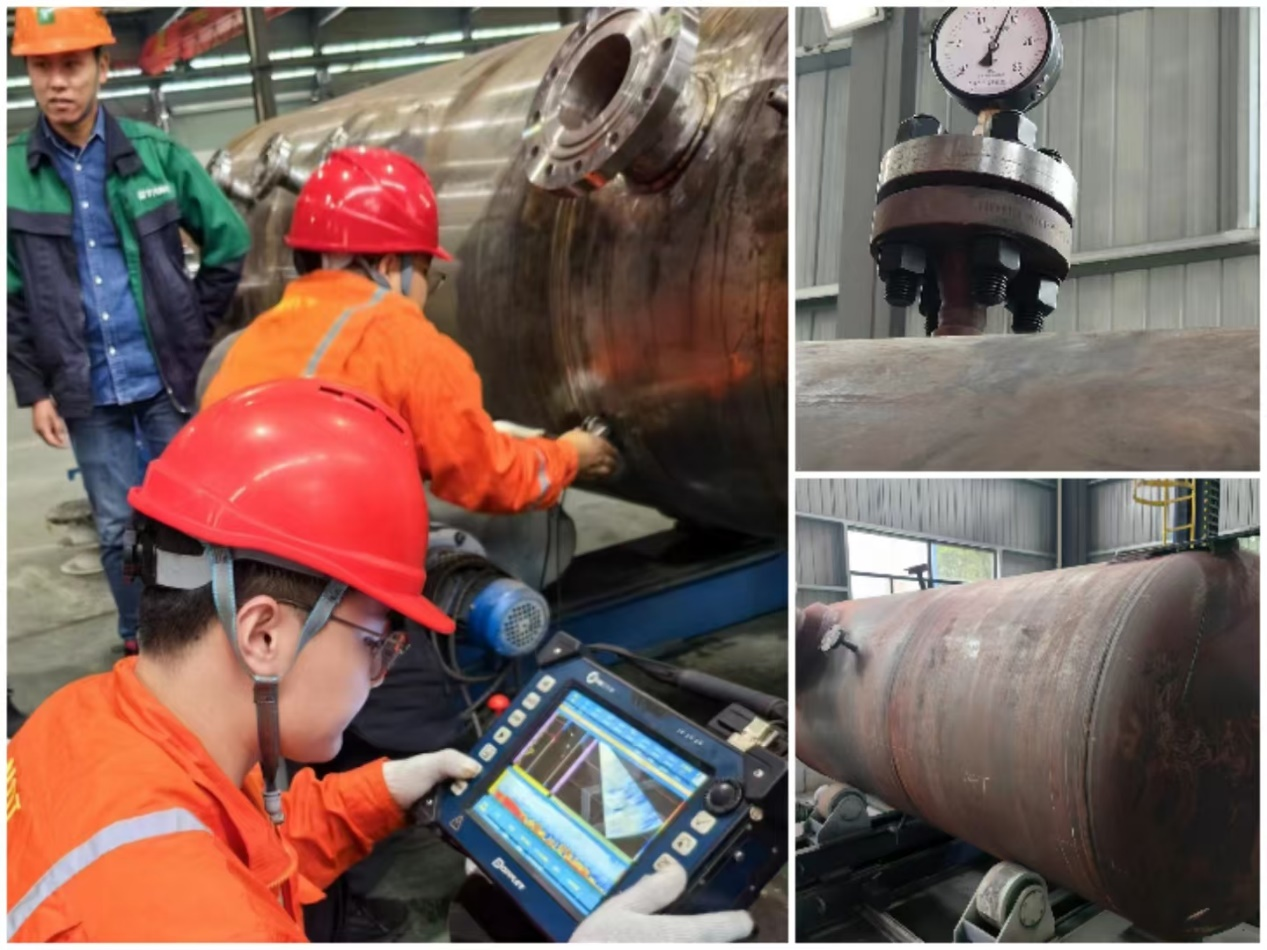

①The capacity of hydrogen storage tank is 8000L；②Working Pressure 10 MPa；③Hydrogen storage tank according to the ASMEVIII1 volume design and manufacture, “U” steel；④SA516 GR70 is the main material of cylinder and head, the thickness of cylinder is 70mm, the thickness of head is 80mm；⑤ Longitudinal girth welding method is argon arc welding and submerged arc welding;⑥Method:100%PAUT+100%RT。
